54132-3662 36 Position FFC FPC Connector Contacts Bottom 0.020" Right Angle

Product Categories

SZ ADE Electronics Co., Ltd

Contact Now

Name: 541323662 36 Position FFC FPC Connector Contacts Bottom 0020quot Right Angle
Brand: original
Price: 1 USD

Brand Name : original

Model Number : 54132-3662

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-5ddays

Packaging Details : carton box

Connector/Contact Type : Contacts, Bottom

Number of Positions : 36

Pitch : 0.020" (0.50mm)

Termination : Solder

FFC, FCB Thickness : 0.30mm

Height Above Board : 0.079" (2.00mm)

Locking Feature : Slide Lock

Cable End Type : Straight, Tapered

Contact Now

54132-3662 36 Position FFC FPC Connector Contacts Bottom 0.020" Right Angle

Specifications of 54132-3662

TYPE	DESCRIPTION
Category	Connectors, Interconnects
	FFC, FPC (Flat Flexible) Connectors
	FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	Molex
Series	Easy-On 54132
Package	Tape & Reel (TR)
	Cut Tape (CT)
Product Status	Active
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	36
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.079" (2.00mm)
Locking Feature	Slide Lock
Cable End Type	Straight, Tapered
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Operating Temperature	-20°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	3.94µin (0.10µm)
Housing Color	White
Actuator Color	Black
Mating Cycles	20
Base Product Number	54132

Environmental & Export Classifications of 54132-3662

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4051

54132-3662 36 Position FFC FPC Connector Contacts Bottom 0.020" Right Angle

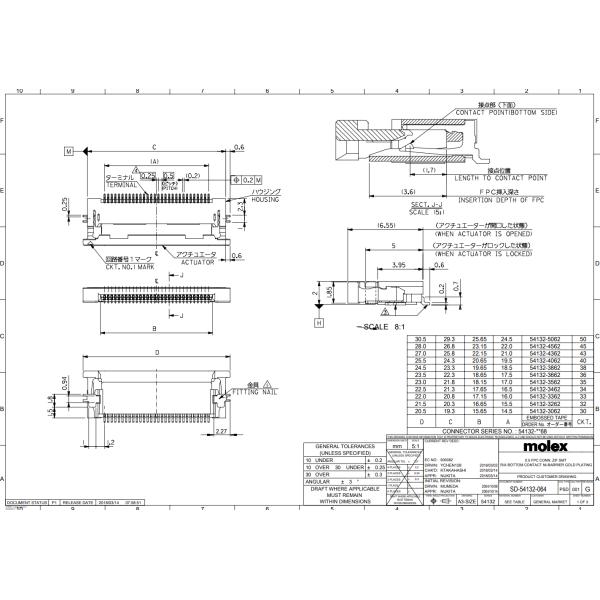

54132-3662 36 Position FFC FPC Connector Contacts Bottom 0.020" Right Angle Images
