DE09-SE-1-BL-JS 9 Position D-Sub Receptacle, Female Sockets Connector

Brand Name : original

Model Number : DE09-SE-1-BL-JS

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-5ddays

Packaging Details : carton box

Connector Style : D-Sub

Connector Type : Receptacle, Female Sockets

Number of Positions : 9

Number of Rows : 2

Mounting Type : Through Hole

Shell Size, Connector Layout : 1 (DE, E)

Flange Feature : Board Side (4-40); Mating Side, Female Screwlock (4-40)

Termination : Solder

Contact Now

DE09-SE-1-BL-JS 9 Position D-Sub Receptacle, Female Sockets Connector

Specifications of DE09-SE-1-BL-JS

TYPE DESCRIPTION
Category Connectors, Interconnects
D-Sub, D-Shaped Connectors
D-Sub Connector Assemblies
Mfr Adam Tech
Series DSE
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type -
Flange Feature Board Side (4-40); Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Backset Spacing -
Features Board Lock
Voltage Rating 250VAC
Color Black
Contact Form -
Dielectric Material Thermoplastic
Wire Gauge -
Contact Material Copper Alloy
Operating Temperature -55°C ~ 105°C
Base Product Number DE09


Environmental & Export Classifications of DE09-SE-1-BL-JS

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040


DE09-SE-1-BL-JS 9 Position D-Sub Receptacle, Female Sockets Connector


Wholesale DE09-SE-1-BL-JS 9 Position D-Sub Receptacle, Female Sockets Connector from china suppliers

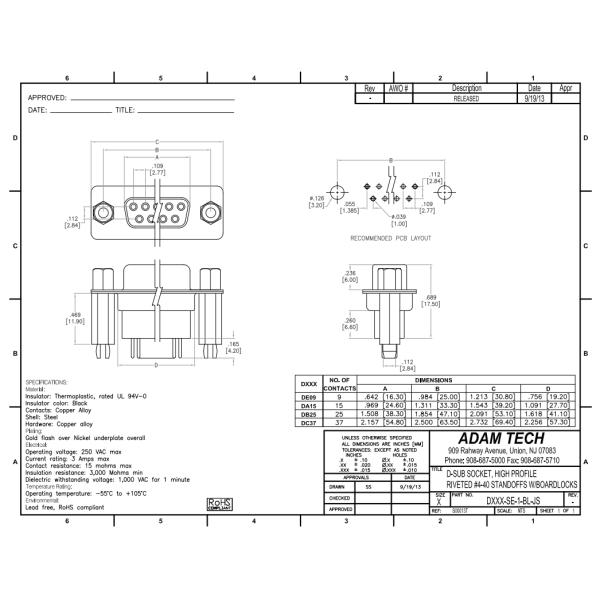

DE09-SE-1-BL-JS 9 Position D-Sub Receptacle, Female Sockets Connector Images
