TPS51206DSQR Converter, DDR Voltage Regulator IC 1 Output 10-WSON (2x2)
Specifications of TPS51206DSQR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| | Power Management (PMIC) |
| | Special Purpose Regulators |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| | Cut Tape (CT) |
| Applications | Converter, DDR |
| Voltage - Input | 3.1V ~ 6.5V |
| Number of Outputs | 1 |
| Voltage - Output | 0.5V ~ 0.9V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-WSON (2x2) |
| Base Product Number | TPS51206 |
Features of TPS51206DSQR
• Supply Input Voltage: Supports 3.3-V Rail and 5-V Rail
• VLDOIN Input Voltage Range: VTT+0.4 V to 3.5 V
• VTT Termination Regulator
– Output Voltage Range: 0.5 V to 0.9 V
– 2-A Peak Sink and Source Current
– Requires Only 10-μF MLCC Output Capacitor
– ±20 mV Accuracy
• VTTREF Buffered Reference
– VDDQ/2 ± 1% Accuracy
– 10-mA Sink and Source Current
• Supports High-Z in S3 and Soft-Stop in S4 and S5 with S3 and S5 Inputs
• Overtemperature Protection
• 10-Pin, 2 mm × 2 mm SON (DSQ) Package
Applications of TPS51206DSQR
• DDR2, DDR3, DDR3L, and DDR4 Memory Power Supplies
• SSTL_18, SSTL_15, SSTL_135 and HSTL Termination
• Telecom and Datacom, GSM Base Station, LCDTV and PDP-TV, Copier and Printer, Set-top Box
Environmental & Export Classifications of TPS51206DSQR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Product Tags:
|
|

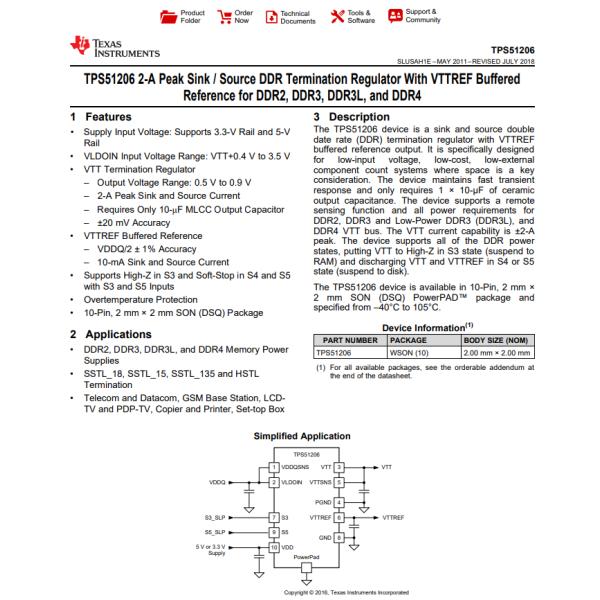

TPS51206DSQR Converter / DDR Voltage Regulator IC 1 Output 10-WSON (2x2) Images
|
