ES1B-13-F Diode 100 V 1A Surface Mount SMA

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

ES1B-13-F Diode 100 V 1A Surface Mount SMA

Brand Name : Original

Model Number : ES1B-13-F

Certification : Original

Place of Origin : Original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Part no : ES1B-13-F

Voltage - DC Reverse (Vr) (Max) : 100 V

Voltage - Forward (Vf) (Max) @ If : 920 mV @ 1 A

Speed : Fast Recovery =< 500ns, > 200mA (Io)

Package / Case : DO-214AC, SMA

Operating Temperature - Junction : -55°C ~ 150°C

Contact Now

ES1B Diode 100 V 1A Surface Mount DO-214AC (SMA) 100 V -55°C ~ 150°C

Zener Diode 15 V 375 mW ±6% Surface Mount SOD-123F

Features of ES1B-13-F

Glass Passivated Die Construction
 Super-Fast Recovery Time for High Efficiency
 Surge Overload Rating to 30A Peak
 Ideally Suited for Automated Assembly
 Lead Free Finish; RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free “Green” Device (Note 3)

 Glass Passivated Die Construction
 Super-Fast Recovery Time for High Efficiency
 Surge Overload Rating to 30A Peak
 Ideally Suited for Automated Assembly
 Lead Free Finish; RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free “Green” Device (Note 3)

Product Attributes of ES1B-13-F

TYPE
DESCRIPTION
Category
Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
Mfr
Diodes Incorporated
Series
-
Package Tape & Reel
Product Status
Active
Technology
Standard
Voltage - DC Reverse (Vr) (Max)
100 V
Current - Average Rectified (Io)
1A
Voltage - Forward (Vf) (Max) @ If
920 mV @ 1 A
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)
25 ns
Current - Reverse Leakage @ Vr
5 µA @ 100 V
Capacitance @ Vr, F
10pF @ 4V, 1MHz
Mounting Type
Surface Mount
Package / Case
DO-214AC, SMA
Supplier Device Package
SMA
Operating Temperature - Junction
-55°C ~ 150°C
Base Product Number
ES1B

range (−10 ̊

Environmental & Export Classifications


with improved accuracy). The LM35 series is available pack-

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080

ES1B-13-F Diode 100 V 1A Surface Mount SMA

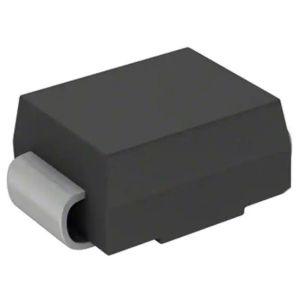

Wholesale ES1B-13-F Diode 100 V 1A Surface Mount SMA from china suppliers
